Not just your average gate...
Winder Joinery employ Guild of Master Craftsman accredited joiners with over 50 years experience. We take great pride in building each gate by hand; delivering outstanding build quality and beauty down to the last detail.
Watch us making an "Arch Top Cottage" gate here: https://youtu.be/Tz3GvIJO-m8?si=vKS5W1OYnWRHK73z
-
The framing of the gates finishes 46.5mm x 95mm and is made from joinery grade, sustainably sourced FSC Scandinavian Redwood Pine Softwood.
-
All gates are glued using waterproof wood glue.
-
The gates are framed, ledged and braced where necessary and the bracing finishes 28mm x 95mm.
-

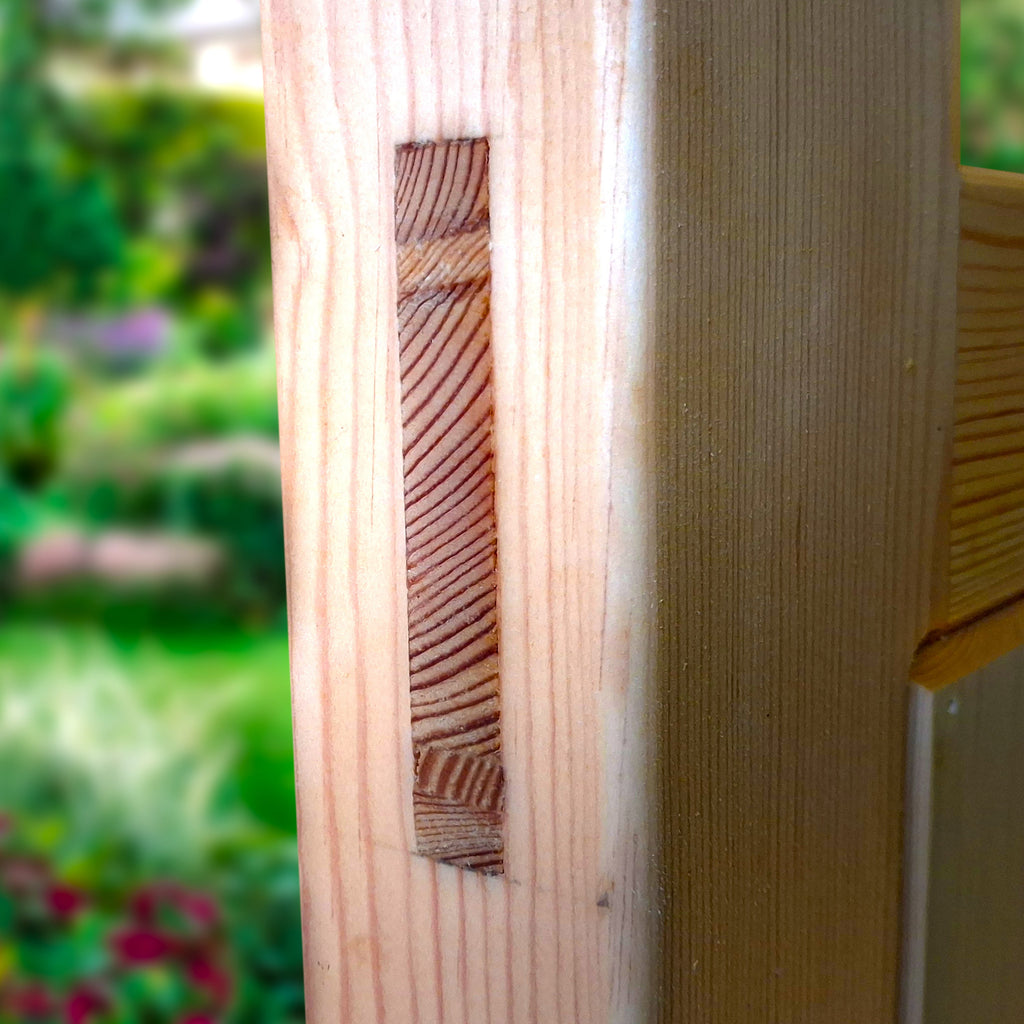

Our frame joints employ “Through mortise and tenon joints” which are glued and wedged for extra strength and durability.
-
Clad with heavy duty custom made 18mm x 112mm finish T&G match boarding for extra strength and durability
-
Superior weather protection system offered in multiple colours
-
Personalisation service with custom CNC lettering and numbers (optional extra)
-
Custom sizes available by request

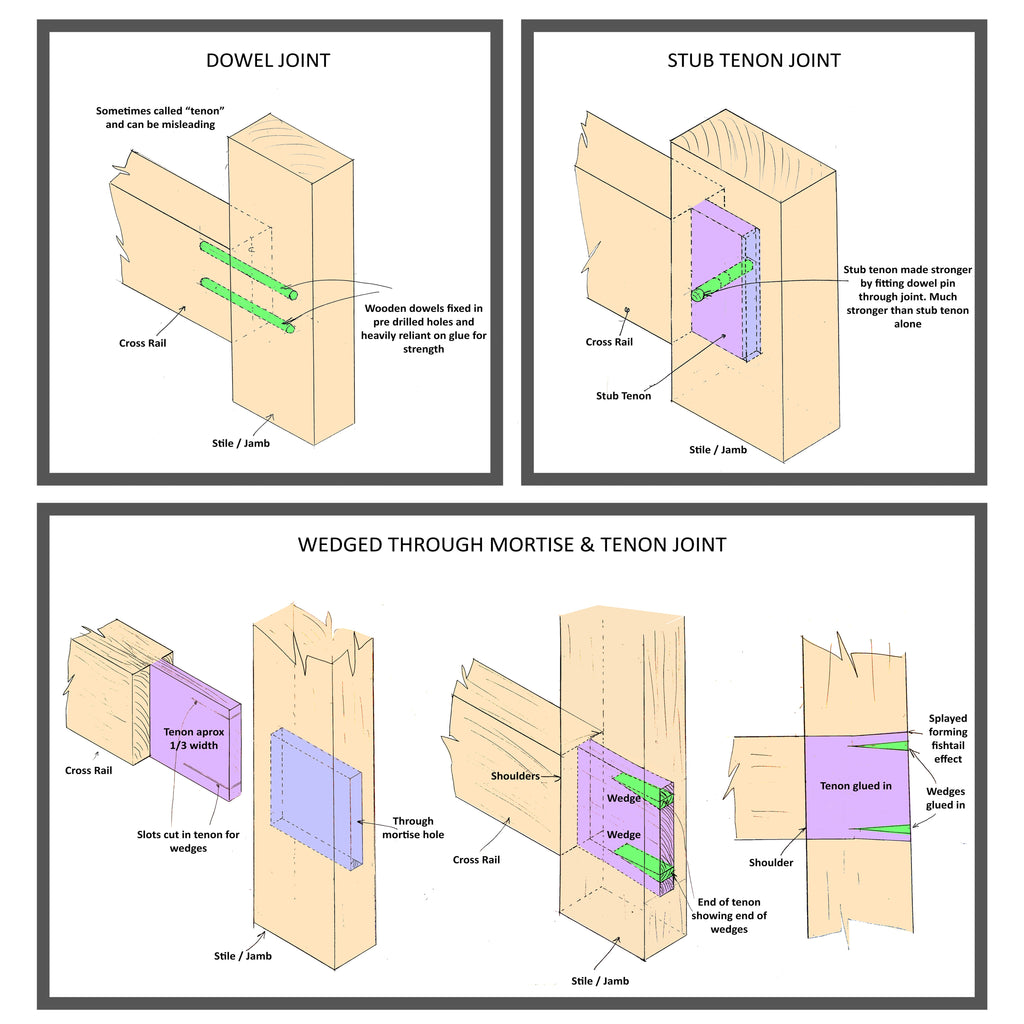

Why We Use Through Mortise and Tenon Joints
When it comes to crafting gates and doors, the choice of jointing method makes a significant difference in strength, durability, and overall quality. At our workshop, we pride ourselves on using the traditional through mortise and tenon joint, a technique renowned for its superior strength and reliability. This method has stood the test of time and continues to be the gold standard for quality joinery.
However, many modern manufacturers have shifted to alternatives like stub tenons or dowel tenons. These methods are primarily driven by the convenience of CNC machinery, allowing for mass production with minimal skilled labour. While these techniques may be quicker and cheaper to produce, they rely heavily on glue for joint integrity, particularly in the case of dowel tenons.
The Truth About Dowel Tenons
The term "dowel tenon" can be misleading. In reality, this is simply a dowelled joint—a joint reinforced with wooden dowels and adhesive, rather than a true tenon integrated into the structure. Unfortunately, the word "dowel" is often omitted from descriptions, creating the impression of a robust, traditional joint when that is not the case.
While advancements in adhesives have improved their strength, total reliance on glue is no substitute for the time-tested durability of a properly crafted through mortise and tenon joint. Joints that depend entirely on glue are inherently weaker, especially under the strain and exposure gates endure outdoors.
Why Our Method Stands Out
Through mortise and tenon joints offer unmatched stability because they are mechanically interlocked, distributing load and stress effectively throughout the structure. This method reduces reliance on glue and ensures the joint remains strong and secure, even under challenging conditions.
In contrast, stub tenons and dowel joints are faster to produce but compromise long-term durability for short-term convenience. While these alternatives may initially appear sufficient, they cannot match the structural integrity of traditional joinery.
Sustainability Through Craftsmanship
In today’s eco-conscious world, choosing a gate made with through mortise and tenon joints isn’t just about quality—it’s also about sustainability. A gate built with this method will last for decades if properly maintained, reducing the need for frequent replacements. This longevity not only saves you money but also reduces waste, conserves resources, and minimises the environmental impact of manufacturing and disposal.
By investing in a gate crafted with traditional joinery, you’re not just choosing superior craftsmanship—you’re making a choice that aligns with a more sustainable and eco-friendly future.
Investing in Quality
When purchasing a gate or door, it’s essential to consider the craftsmanship behind the product. Opting for a gate built with through mortise and tenon joints is an investment in quality, longevity, and peace of mind. It’s worth doing it right the first time, ensuring your gate not only looks great but also contributes to a more sustainable way of living.
Wood Protection Options
All timber left outside needs protecting against mould, algae, moisture and UV rays. Winder Joinery offer “Full Protection” & “Limited Protection” options for every gate we build. Depending on if you would like a stained or opaque painted finish, we have got you covered.
Full Protection - Colour: NATURAL
Full Protection - Colour: LIGHT OAK
Full Protection - Colour: WALNUT
Full Protection - Colour: LIGHT GREY
Full Protection - Colour: MEDIUM GREY
Full Protection - Colour: DARK GREY
Limited Protection - Colour: NATURAL
How does it work?
Our full protection system consists of the gate being treated with Sikkens Cetol HLS and Sikkens Filter 7.
When any “Full Protection” option is chosen we will dip the gate in a bath of Sikkens to get the process started. When the gate is delivered we will include small tins of Sikkens HLS & Filter 7 in the colour of your choice. These chemicals are to be applied to the gate by the customer. This is to avoid scratches or scuffs which may occur in transit.
If "Limited protection” is chosen, the gate will be shipped with a protective dip but no additional top coats will be provided unless they are ordered separately. The colour of the gate will appear Natural. This may be desirable for customers who intend to paint their gate a solid colour, however we must stress the importance of only using oil based primers before painting. We stock "Johnstones Stormshield Flexible Primer" which is the best primer for this task.
For more information please email winderjoinery@gmail.com or call 01226 872262
Need A Custom Size?
If you require a custom size gate we can provide this. Please make contact with us directly to confirm measurements. We would greatly appreciate you making sure we have acknowledged your message or call if you require custom work. We welcome you to reach out and speak with our friendly staff who are eager to build your perfect gate.
Contact: winderjoinery@gmail.com & 01226 872262.
Hinges and Latches:
We offer latches and our own special hinge kit for these gates. The hinges are slightly shorter to not run off the rail of the gate.
https://www.winderjoineryltd.co.uk/products/hardwarekitcurveped
https://www.winderjoineryltd.co.uk/collections/gate-latches
https://www.winderjoineryltd.co.uk/collections/hinges
https://www.winderjoineryltd.co.uk/collections/tudor-style-hardware
https://www.winderjoineryltd.co.uk/products/tinofjohnstonesprimer
CNC Personalisation:
We offer beautiful CNC V-Carve number and letter engraving on our gates. Make your gate really stand out by having your gate personalised with your house number and/or name. As standard, the engraving will appear on the middle rail of this gate but other options are available by request.
https://www.winderjoineryltd.co.uk/collections/cnc-personalised-gate-carvings
Gate Posts:
Please note that our posts are built to attach to existing masonry. They do not go into the ground.
https://www.winderjoineryltd.co.uk/products/gpostsmall
Fence Panels:
Need your fence to match your gate? We build fence panels / wall toppers in the same style as our gates!
https://www.winderjoineryltd.co.uk/collections/fence-panels
Polite notice:
Please wait until you have the gate in your possession before arranging fitters. On rare occasion order dates may be delayed due to unforeseen circumstances. We often ship hardware and tins of Sikkens ahead of the gate so please do not worry if you receive these extras before the gate arrives.
