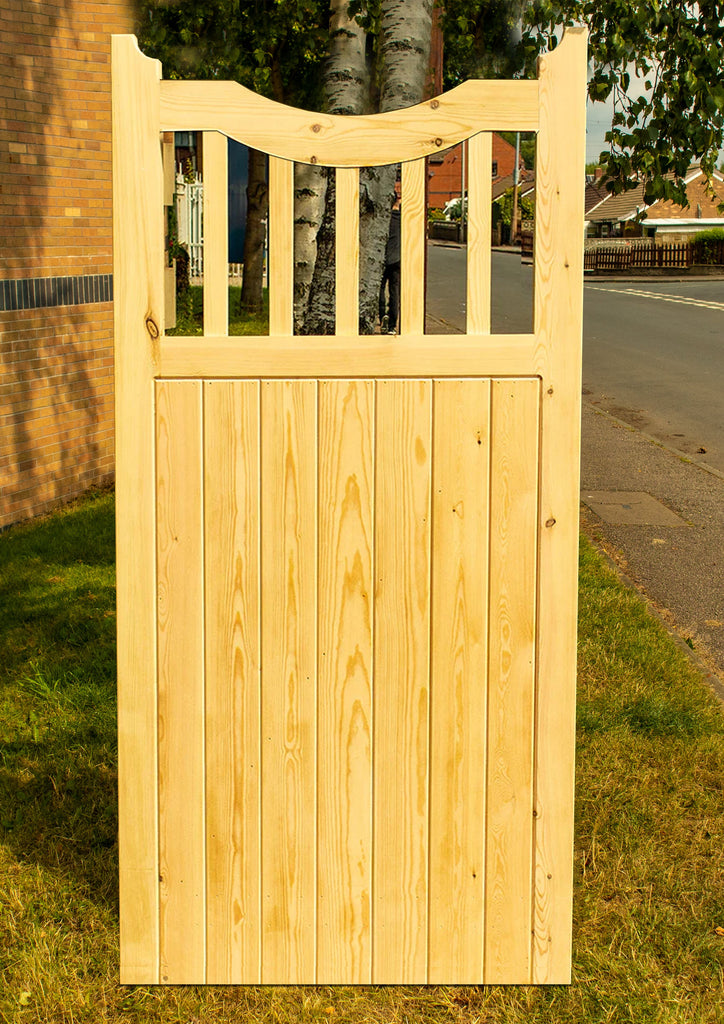

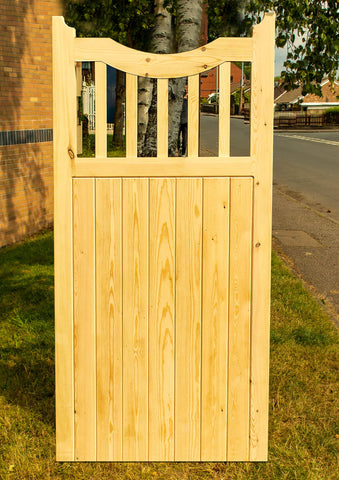

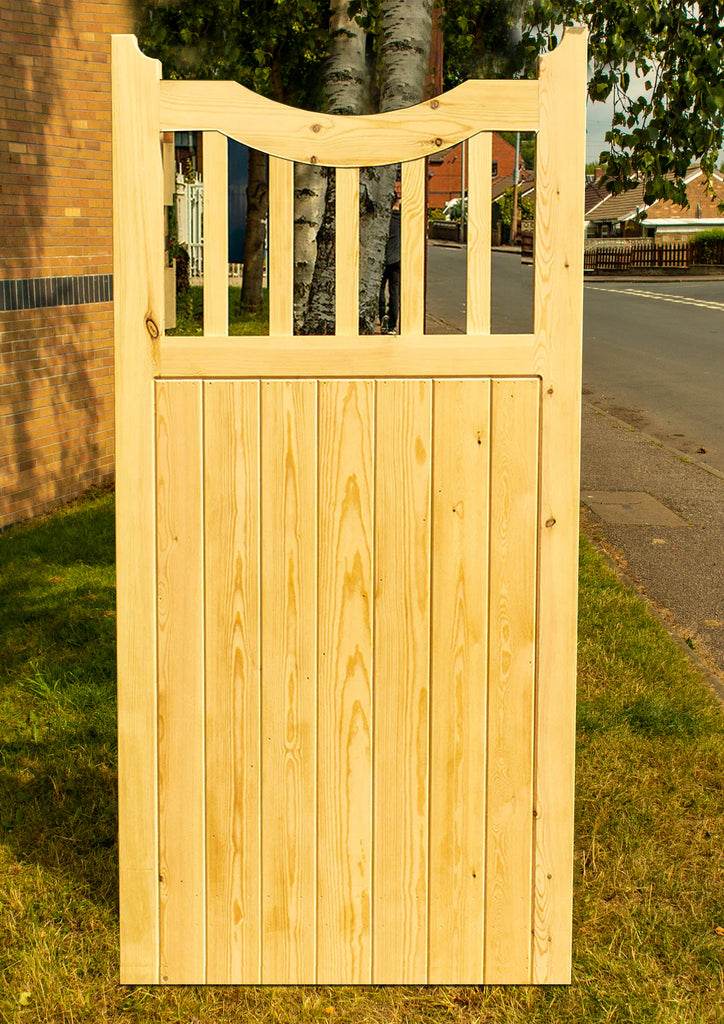

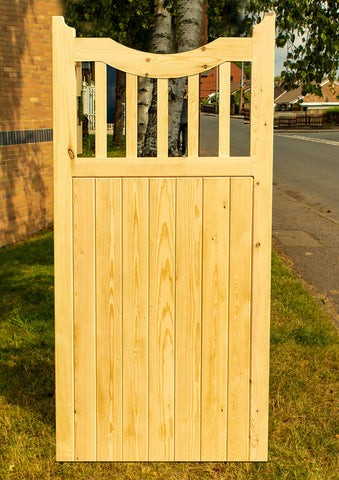

What you see here is a top quality traditional Elmhirst style timber gate, all gates are:
Made to the highest standard by qualifield craftsmen with over 40 years experience.
Made using 48mm x 95mm joinery grade Scandinavian softwood.

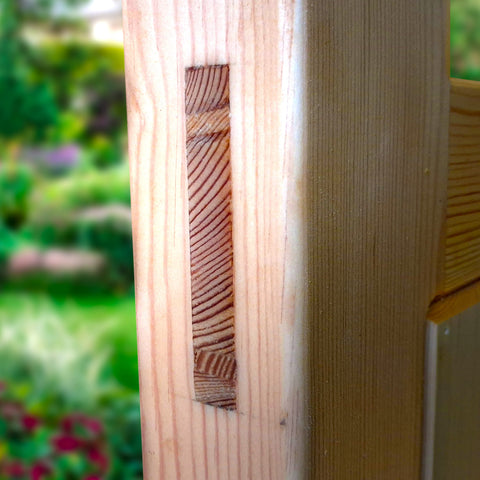

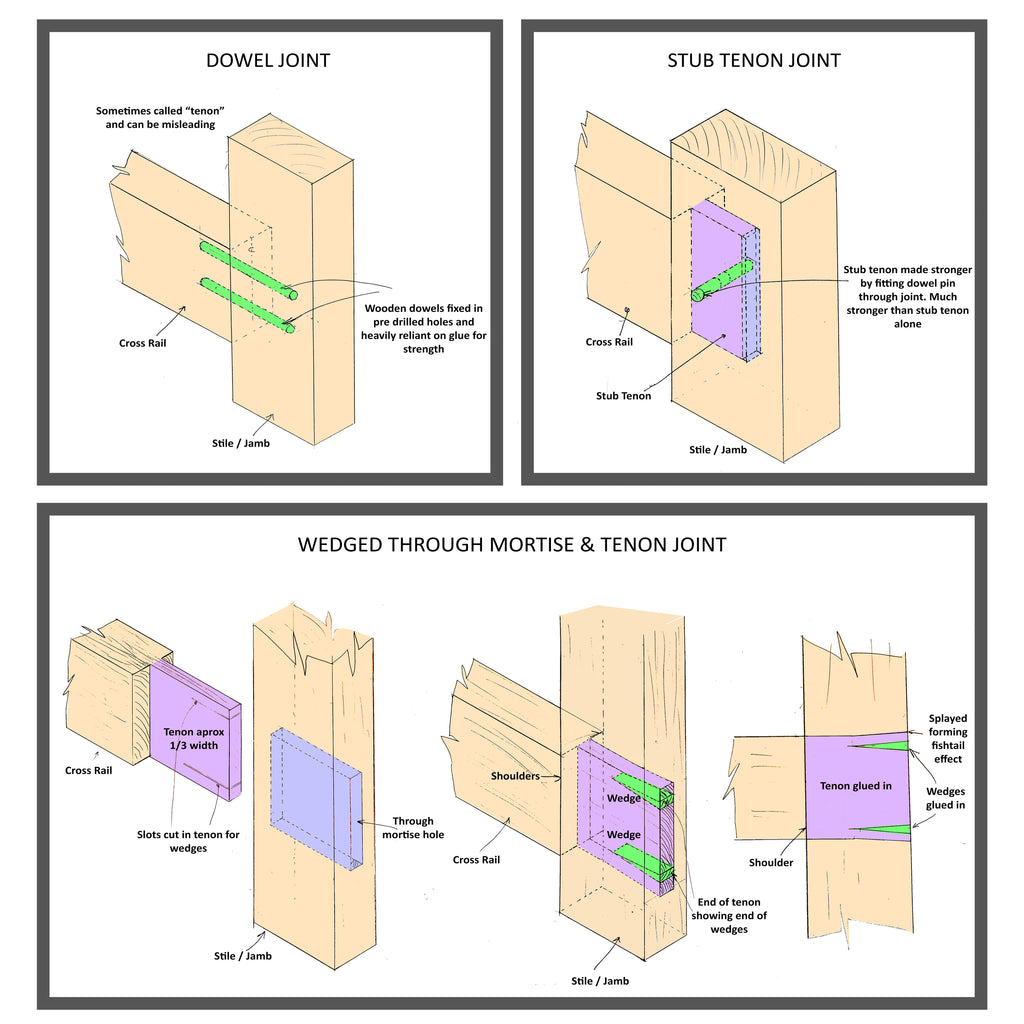

Made using traditional Mortised and Tenoned joints.
Clad with heavy duty 18mm x 125mm T&G matchboarding for extra strength and durability.
The vertical spindles are 48mm x 30mm and are mortised and tenoned into the top and middle rails.
IMPORTANT: If you require a custom size gate in this style we can provide this but we must insist that you make contact with us directly to confirm measurements and to make sure we know you need a custom size. You can email email@example.com and/or call 01226 872262. We would greatly appreciate you making sure we have acknowledged your message or call if you require custom work. A standard charge of £20 is added to the cost of the gate for custom sizes. This can be paid over the phone so please leave a contact number.
We now offer beautiful CNC V-Carve number and letter engraving on our gates!
Make your gate really stand out by having your gate personalised with your house number and/or name using our CNC machine.
You can add this product to your gate purchase by following this link https://www.winderjoineryltd.co.uk/collections/all/cnc-carving
The engraving on this gate would be on the middle rail.
You can also purchase gate posts and special hinge kit which are perfect for this gate if you follow this links here:
We also accept payment through all major credit and debit cards except American Express.
Please state the correct width and height dimensions. (We cannot accept returns if the wrong size is ordered as the gates are made to order)
The Gates are made by Winder Joinery, we are a reliable, well establised family run business with over 40 years experience, we pride ourselves on top quality workmanship and so each gate is made to the highest standard guaranteed.
We insist on quality and durability...
All doors / gates are made using ex 9”x 2” (230mm x 51mm) rough sawn 'unsorted' Scandinavian redwood which is the best available. We cut it to 105mm width then plane square edge it to between 46mm and 48mm thickness, dependent the on supply from the timber imported and finishes a full 95mm width.
In general, industry match boarding is sometimes quoted as “125mm x 19mm” which can be misleading as this is the size the boarding starts as in rough sawn form. In reality, the finished planed size of this match boarding in 118mm x 15.5mm.
We do things a little different. The match boarding we use is manufactured for us (or sometimes by us) from 5”x1” (125mm x 25.4mm) rough sawn 'unsorted' Scandinavian redwood which is the best available and the finish of the boarding is a full 118mm x 18mm thickness. In short, our match boarding is much stronger and stable. We feel the need to explain this as we have to cover the extra cost for the quality we provide.
